Free Local Experience

Run Nextmv Applications locally for free

A tutorial to explore the free local experience for running Nextmv Applications using Python.

⌛️ Approximate time to complete: 15 min.

In this tutorial you will learn how to use the nextmv.local package for working with Nextmv Applications locally. This tutorial is the same as the getting started with an existing decision model tutorial. Complete this tutorial if you:

  • Want to explore Nextmv, by starting with a free alternative.
  • Are fluent using Python 🐍.

To complete this tutorial, we will use an external example, working under the principle that it is not a Nextmv-created decision model. You can, and should, use your own decision model, or follow along with the example provided:

Let's dive right in 🤿.

1. Prepare the executable code

If you are working with your own decision model and already know that it executes, feel free to skip this step.

The decision model is composed of executable code that solves an optimization problem. Copy the desired example code to a script named main.py.

"""Capacited Vehicles Routing Problem (CVRP)."""

from ortools.constraint_solver import routing_enums_pb2
from ortools.constraint_solver import pywrapcp



def create_data_model():
    """Stores the data for the problem."""
    data = {}
    data["distance_matrix"] = [
        # fmt: off
      [0, 548, 776, 696, 582, 274, 502, 194, 308, 194, 536, 502, 388, 354, 468, 776, 662],
      [548, 0, 684, 308, 194, 502, 730, 354, 696, 742, 1084, 594, 480, 674, 1016, 868, 1210],
      [776, 684, 0, 992, 878, 502, 274, 810, 468, 742, 400, 1278, 1164, 1130, 788, 1552, 754],
      [696, 308, 992, 0, 114, 650, 878, 502, 844, 890, 1232, 514, 628, 822, 1164, 560, 1358],
      [582, 194, 878, 114, 0, 536, 764, 388, 730, 776, 1118, 400, 514, 708, 1050, 674, 1244],
      [274, 502, 502, 650, 536, 0, 228, 308, 194, 240, 582, 776, 662, 628, 514, 1050, 708],
      [502, 730, 274, 878, 764, 228, 0, 536, 194, 468, 354, 1004, 890, 856, 514, 1278, 480],
      [194, 354, 810, 502, 388, 308, 536, 0, 342, 388, 730, 468, 354, 320, 662, 742, 856],
      [308, 696, 468, 844, 730, 194, 194, 342, 0, 274, 388, 810, 696, 662, 320, 1084, 514],
      [194, 742, 742, 890, 776, 240, 468, 388, 274, 0, 342, 536, 422, 388, 274, 810, 468],
      [536, 1084, 400, 1232, 1118, 582, 354, 730, 388, 342, 0, 878, 764, 730, 388, 1152, 354],
      [502, 594, 1278, 514, 400, 776, 1004, 468, 810, 536, 878, 0, 114, 308, 650, 274, 844],
      [388, 480, 1164, 628, 514, 662, 890, 354, 696, 422, 764, 114, 0, 194, 536, 388, 730],
      [354, 674, 1130, 822, 708, 628, 856, 320, 662, 388, 730, 308, 194, 0, 342, 422, 536],
      [468, 1016, 788, 1164, 1050, 514, 514, 662, 320, 274, 388, 650, 536, 342, 0, 764, 194],
      [776, 868, 1552, 560, 674, 1050, 1278, 742, 1084, 810, 1152, 274, 388, 422, 764, 0, 798],
      [662, 1210, 754, 1358, 1244, 708, 480, 856, 514, 468, 354, 844, 730, 536, 194, 798, 0],
        # fmt: on
    ]
    data["demands"] = [0, 1, 1, 2, 4, 2, 4, 8, 8, 1, 2, 1, 2, 4, 4, 8, 8]
    data["vehicle_capacities"] = [15, 15, 15, 15]
    data["num_vehicles"] = 4
    data["depot"] = 0
    return data


def print_solution(data, manager, routing, solution):
    """Prints solution on console."""
    print(f"Objective: {solution.ObjectiveValue()}")
    total_distance = 0
    total_load = 0
    for vehicle_id in range(data["num_vehicles"]):
        if not routing.IsVehicleUsed(solution, vehicle_id):
            continue
        index = routing.Start(vehicle_id)
        plan_output = f"Route for vehicle {vehicle_id}:\n"
        route_distance = 0
        route_load = 0
        while not routing.IsEnd(index):
            node_index = manager.IndexToNode(index)
            route_load += data["demands"][node_index]
            plan_output += f" {node_index} Load({route_load}) -> "
            previous_index = index
            index = solution.Value(routing.NextVar(index))
            route_distance += routing.GetArcCostForVehicle(
                previous_index, index, vehicle_id
            )
        plan_output += f" {manager.IndexToNode(index)} Load({route_load})\n"
        plan_output += f"Distance of the route: {route_distance}m\n"
        plan_output += f"Load of the route: {route_load}\n"
        print(plan_output)
        total_distance += route_distance
        total_load += route_load
    print(f"Total distance of all routes: {total_distance}m")
    print(f"Total load of all routes: {total_load}")


def main():
    """Solve the CVRP problem."""
    # Instantiate the data problem.
    data = create_data_model()

    # Create the routing index manager.
    manager = pywrapcp.RoutingIndexManager(
        len(data["distance_matrix"]), data["num_vehicles"], data["depot"]
    )

    # Create Routing Model.
    routing = pywrapcp.RoutingModel(manager)

    # Create and register a transit callback.
    def distance_callback(from_index, to_index):
        """Returns the distance between the two nodes."""
        # Convert from routing variable Index to distance matrix NodeIndex.
        from_node = manager.IndexToNode(from_index)
        to_node = manager.IndexToNode(to_index)
        return data["distance_matrix"][from_node][to_node]

    transit_callback_index = routing.RegisterTransitCallback(distance_callback)

    # Define cost of each arc.
    routing.SetArcCostEvaluatorOfAllVehicles(transit_callback_index)

    # Add Capacity constraint.
    def demand_callback(from_index):
        """Returns the demand of the node."""
        # Convert from routing variable Index to demands NodeIndex.
        from_node = manager.IndexToNode(from_index)
        return data["demands"][from_node]

    demand_callback_index = routing.RegisterUnaryTransitCallback(demand_callback)
    routing.AddDimensionWithVehicleCapacity(
        demand_callback_index,
        0,  # null capacity slack
        data["vehicle_capacities"],  # vehicle maximum capacities
        True,  # start cumul to zero
        "Capacity",
    )

    # Setting first solution heuristic.
    search_parameters = pywrapcp.DefaultRoutingSearchParameters()
    search_parameters.first_solution_strategy = (
        routing_enums_pb2.FirstSolutionStrategy.PATH_CHEAPEST_ARC
    )
    search_parameters.local_search_metaheuristic = (
        routing_enums_pb2.LocalSearchMetaheuristic.GUIDED_LOCAL_SEARCH
    )
    search_parameters.time_limit.FromSeconds(1)

    # Solve the problem.
    solution = routing.SolveWithParameters(search_parameters)

    # Print solution on console.
    if solution:
        print_solution(data, manager, routing, solution)


if __name__ == "__main__":
    main()
Copy

2. Install requirements

If you are working with your own decision model and already have all requirements ready for it, feel free to skip this step.

Make sure you have the appropriate requirements installed for your model. If you don't have one already, create a requirements.txt file in the root of your project with the Python package requirements needed.

ortools>=9.14.6206
Copy

Install the requirements by running the following command:

pip install -r requirements.txt
Copy

3. Run the executable code

If you are working with your own decision model and already know that it executes, feel free to skip this step.

Make sure your decision model works by running the executable code.

$ python main.py

Objective: 6208
Route for vehicle 0:
 0 Load(0) ->  7 Load(8) ->  3 Load(10) ->  4 Load(14) ->  1 Load(15) ->  0 Load(15)
Distance of the route: 1552m
Load of the route: 15

Route for vehicle 1:
 0 Load(0) ->  14 Load(4) ->  16 Load(12) ->  10 Load(14) ->  9 Load(15) ->  0 Load(15)
Distance of the route: 1552m
Load of the route: 15

Route for vehicle 2:
 0 Load(0) ->  12 Load(2) ->  11 Load(3) ->  15 Load(11) ->  13 Load(15) ->  0 Load(15)
Distance of the route: 1552m
Load of the route: 15

Route for vehicle 3:
 0 Load(0) ->  8 Load(8) ->  2 Load(9) ->  6 Load(13) ->  5 Load(15) ->  0 Load(15)
Distance of the route: 1552m
Load of the route: 15

Total distance of all routes: 6208m
Total load of all routes: 60
Copy

4. Nextmv-ify the decision model

We are going to turn the executable decision model into a Nextmv Application.

So, what is a Nextmv Application? A Nextmv Application is an entity that contains a decision model as executable code. An Application can make a run by taking an input, executing the decision model, and producing an output. An Application is defined by its code, and a configuration file named app.yaml, known as the "app manifest".

Think of the app as a shell that contains your decision model code, and provides the necessary structure to run it.

A run on a Nextmv Application follows this convention:

App diagram

  • The app receives one, or more, inputs (problem data).
  • The app run can be configured through options.
  • The app processes the inputs, and executes the decision model.
  • The app produces one, or more, outputs (solutions).
  • The app optionally produces statistics (metrics) and assets (can be visual, like charts).

We are going to adapt the example so that it can follow these conventions.

Start by adding the app.yaml file, which is known as the app manifest, to the root of the project. This file contains the configuration of the app.

type: python
runtime: ghcr.io/nextmv-io/runtime/python:3.11
files:
  - main.py
python:
  pip-requirements: requirements.txt
configuration:
  content:
    format: json
  options:
    items:
      - name: duration
        description: Duration for the solver, in seconds.
        required: false
        option_type: float
        default: 1
        additional_attributes:
          min: 0
          max: 10
          step: 1
        ui:
          control_type: slider
      - name: input
        description: Path to input file. Default is stdin.
        required: false
        option_type: string
        default: ""
      - name: output
        description: Path to output file. Default is stdout.
        required: false
        option_type: string
        default: ""
Copy

This tutorial is not meant to discuss the app manifest in-depth, for that you can go to the manifest docs. However, these are the main attributes shown in the manifest:

  • type: it is a python application.
  • runtime: when deployed to Nextmv Cloud, this application can be run on the standard python:3.11 runtime.
  • files: contains files that make up the executable code of the app. In this case, we only need the main.py file.
  • python.pip-requirements: specifies the file with the Python packages that need to be installed for the application.

A dependency for nextmv is also added. This dependency is optional, and the modeling constructs are not needed to run a Nextmv Application locally. However, using the SDK modeling features makes it easier to work with Nextmv apps, as a lot of convenient functionality is already baked in, like:

  • Reading and interpreting the manifest.
  • Easily reading and writing files based on the content format.
  • Parsing and using options from the command line, or environment variables.
  • Structuring inputs and outputs.

These are the new requirements.txt contents:

ortools>=9.14.6206
nextmv>=0.35.0
Copy

Now, you can overwrite your main.py file with the Nextmv-ified version.

"""Capacited Vehicles Routing Problem (CVRP)."""

import json

import nextmv
import plotly.graph_objects as go
from ortools.constraint_solver import pywrapcp, routing_enums_pb2


def print_solution(
    data, manager, routing, solution, options: nextmv.Options
) -> nextmv.Output:
    """Prints solution on console."""
    print(f"Objective: {solution.ObjectiveValue()}")

    total_distance = 0
    total_load = 0
    routes = []
    for vehicle_id in range(data["num_vehicles"]):
        if not routing.IsVehicleUsed(solution, vehicle_id):
            continue
        index = routing.Start(vehicle_id)
        plan_output = f"Route for vehicle {vehicle_id}:\n"
        route_distance = 0
        route_load = 0
        plan = []
        while not routing.IsEnd(index):
            node_index = manager.IndexToNode(index)
            route_load += data["demands"][node_index]
            plan_output += f" {node_index} Load({route_load}) -> "
            previous_index = index
            index = solution.Value(routing.NextVar(index))
            route_distance += routing.GetArcCostForVehicle(
                previous_index, index, vehicle_id
            )
            stop = {
                "node": node_index,
                "load": route_load,
            }
            plan.append(stop)
        plan_output += f" {manager.IndexToNode(index)} Load({route_load})\n"
        stop = {
            "node": manager.IndexToNode(index),
            "load": route_load,
        }
        plan.append(stop)
        plan_output += f"Distance of the route: {route_distance}m\n"
        plan_output += f"Load of the route: {route_load}\n"
        route = {
            "vehicle_id": vehicle_id,
            "distance": route_distance,
            "load": route_load,
            "plan": plan,
        }
        routes.append(route)
        print(plan_output)
        total_distance += route_distance
        total_load += route_load
    print(f"Total distance of all routes: {total_distance}m")
    print(f"Total load of all routes: {total_load}")

    statistics = nextmv.Statistics(
        result=nextmv.ResultStatistics(
            duration=routing.solver().WallTime() / 1000.0,
            value=solution.ObjectiveValue(),
            custom={
                "total_distance": total_distance,
                "total_load": total_load,
            },
        )
    )

    # Create visualization assets
    assets = create_route_visualization(data, routes)

    output = nextmv.Output(
        options=options,
        solution={"routes": routes},
        statistics=statistics,
        assets=assets,
    )

    return output

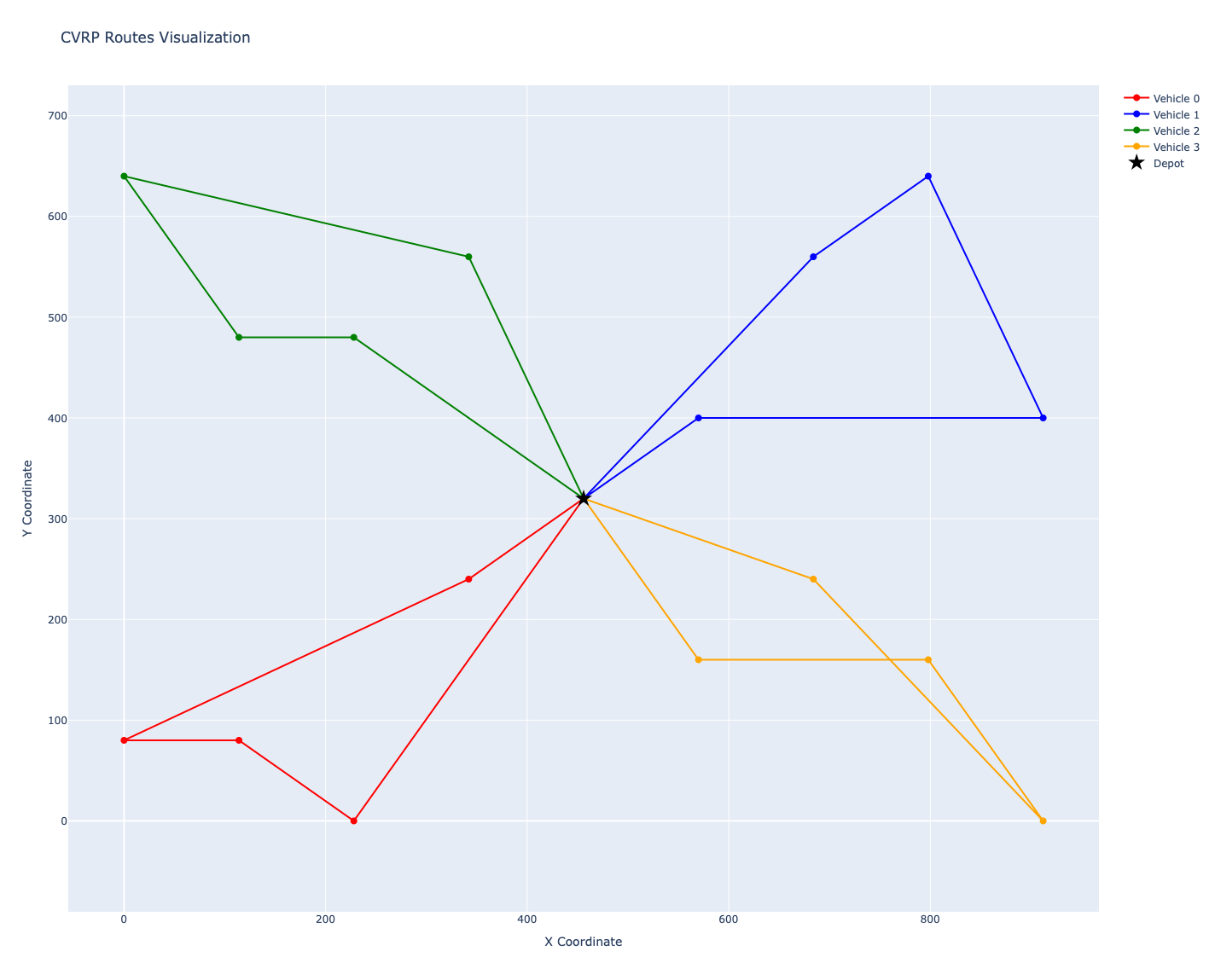

def create_route_visualization(data, routes) -> list[nextmv.Asset]:
    """Create a Plotly visualization of the vehicle routes."""
    coordinates = data.get("coordinates", [])
    if not coordinates:
        return []

    fig = go.Figure()

    # Define colors for different vehicles
    colors = ["red", "blue", "green", "orange", "purple", "brown", "pink", "gray"]

    # Plot each route
    for route in routes:
        vehicle_id = route["vehicle_id"]
        plan = route["plan"]
        color = colors[vehicle_id % len(colors)]

        # Extract coordinates for this route
        route_x = []
        route_y = []
        for stop in plan:
            node = stop["node"]
            if node < len(coordinates):
                route_x.append(coordinates[node][0])
                route_y.append(coordinates[node][1])

        # Plot the route as a line
        fig.add_trace(
            go.Scatter(
                x=route_x,
                y=route_y,
                mode="lines+markers",
                name=f"Vehicle {vehicle_id}",
                line=dict(color=color, width=2),
                marker=dict(size=8),
            )
        )

    # Highlight the depot
    if coordinates:
        depot_x, depot_y = coordinates[0]
        fig.add_trace(
            go.Scatter(
                x=[depot_x],
                y=[depot_y],
                mode="markers",
                name="Depot",
                marker=dict(size=15, color="black", symbol="star"),
            )
        )

    # Update layout
    fig.update_layout(
        title="CVRP Routes Visualization",
        xaxis_title="X Coordinate",
        yaxis_title="Y Coordinate",
        showlegend=True,
        hovermode="closest",
        yaxis=dict(scaleanchor="x", scaleratio=1),
    )

    # Convert figure to JSON
    fig_json = fig.to_json()

    # Create asset
    assets = [
        nextmv.Asset(
            name="Route Visualization",
            content_type="json",
            visual=nextmv.Visual(
                visual_schema=nextmv.VisualSchema.PLOTLY,
                visual_type="custom-tab",
                label="Routes",
            ),
            content=[json.loads(fig_json)],
        )
    ]

    return assets


def main():
    """Solve the CVRP problem."""
    nextmv.redirect_stdout()
    manifest = nextmv.Manifest.from_yaml(".")
    options = manifest.extract_options()
    input = nextmv.load(path=options.input)

    # Instantiate the data problem.
    data = input.data

    # Create the routing index manager.
    manager = pywrapcp.RoutingIndexManager(
        len(data["distance_matrix"]), data["num_vehicles"], data["depot"]
    )

    # Create Routing Model.
    routing = pywrapcp.RoutingModel(manager)

    # Create and register a transit callback.
    def distance_callback(from_index, to_index):
        """Returns the distance between the two nodes."""
        # Convert from routing variable Index to distance matrix NodeIndex.
        from_node = manager.IndexToNode(from_index)
        to_node = manager.IndexToNode(to_index)
        return data["distance_matrix"][from_node][to_node]

    transit_callback_index = routing.RegisterTransitCallback(distance_callback)

    # Define cost of each arc.
    routing.SetArcCostEvaluatorOfAllVehicles(transit_callback_index)

    # Add Capacity constraint.
    def demand_callback(from_index):
        """Returns the demand of the node."""
        # Convert from routing variable Index to demands NodeIndex.
        from_node = manager.IndexToNode(from_index)
        return data["demands"][from_node]

    demand_callback_index = routing.RegisterUnaryTransitCallback(demand_callback)
    routing.AddDimensionWithVehicleCapacity(
        demand_callback_index,
        0,  # null capacity slack
        data["vehicle_capacities"],  # vehicle maximum capacities
        True,  # start cumul to zero
        "Capacity",
    )

    # Setting first solution heuristic.
    search_parameters = pywrapcp.DefaultRoutingSearchParameters()
    search_parameters.first_solution_strategy = (
        routing_enums_pb2.FirstSolutionStrategy.PATH_CHEAPEST_ARC
    )
    search_parameters.local_search_metaheuristic = (
        routing_enums_pb2.LocalSearchMetaheuristic.GUIDED_LOCAL_SEARCH
    )
    search_parameters.time_limit.FromSeconds(options.duration)

    # Solve the problem.
    solution = routing.SolveWithParameters(search_parameters)

    # Print solution on console.
    if solution:
        output = print_solution(data, manager, routing, solution, options)
        nextmv.write(output, path=options.output)


if __name__ == "__main__":
    main()
Copy

This is a short summary of the changes introduced to the example:

  • Load the app manifest from the app.yaml file.
  • Extract options (configurations) from the manifest.
  • The input data is no longer in the Python file itself. We will move it to a file under inputs/input.json. In a single json file we will define the complete input. Given that we are working with the json content format, we use the Python SDK to load the input data from stdin.
  • Modify the definition of data to use the loaded input data.
  • Store the solution to the problem, and solver metrics (statistics), in an output.
  • Write the output to stdout, given that we are working with the json content format.

Here is the data file that you need to place in an inputs directory:

{
  "distance_matrix": [
    [0, 548, 776, 696, 582, 274, 502, 194, 308, 194, 536, 502, 388, 354, 468, 776, 662],
    [548, 0, 684, 308, 194, 502, 730, 354, 696, 742, 1084, 594, 480, 674, 1016, 868, 1210],
    [776, 684, 0, 992, 878, 502, 274, 810, 468, 742, 400, 1278, 1164, 1130, 788, 1552, 754],
    [696, 308, 992, 0, 114, 650, 878, 502, 844, 890, 1232, 514, 628, 822, 1164, 560, 1358],
    [582, 194, 878, 114, 0, 536, 764, 388, 730, 776, 1118, 400, 514, 708, 1050, 674, 1244],
    [274, 502, 502, 650, 536, 0, 228, 308, 194, 240, 582, 776, 662, 628, 514, 1050, 708],
    [502, 730, 274, 878, 764, 228, 0, 536, 194, 468, 354, 1004, 890, 856, 514, 1278, 480],
    [194, 354, 810, 502, 388, 308, 536, 0, 342, 388, 730, 468, 354, 320, 662, 742, 856],
    [308, 696, 468, 844, 730, 194, 194, 342, 0, 274, 388, 810, 696, 662, 320, 1084, 514],
    [194, 742, 742, 890, 776, 240, 468, 388, 274, 0, 342, 536, 422, 388, 274, 810, 468],
    [536, 1084, 400, 1232, 1118, 582, 354, 730, 388, 342, 0, 878, 764, 730, 388, 1152, 354],
    [502, 594, 1278, 514, 400, 776, 1004, 468, 810, 536, 878, 0, 114, 308, 650, 274, 844],
    [388, 480, 1164, 628, 514, 662, 890, 354, 696, 422, 764, 114, 0, 194, 536, 388, 730],
    [354, 674, 1130, 822, 708, 628, 856, 320, 662, 388, 730, 308, 194, 0, 342, 422, 536],
    [468, 1016, 788, 1164, 1050, 514, 514, 662, 320, 274, 388, 650, 536, 342, 0, 764, 194],
    [776, 868, 1552, 560, 674, 1050, 1278, 742, 1084, 810, 1152, 274, 388, 422, 764, 0, 798],
    [662, 1210, 754, 1358, 1244, 708, 480, 856, 514, 468, 354, 844, 730, 536, 194, 798, 0]
  ],
  "demands" : [0, 1, 1, 2, 4, 2, 4, 8, 8, 1, 2, 1, 2, 4, 4, 8, 8],
  "vehicle_capacities" : [15, 15, 15, 15],
  "num_vehicles" : 4,
  "depot" : 0
}
Copy

After you are done Nextmv-ifying, your Nextmv app should have the following structure, for the example provided:

.
├── app.yaml
├── inputs
│   └── input.json
├── main.py
└── requirements.txt
Copy

You are ready to run your existing Nextmv Application locally using the nextmv.local package 🥳.

5. Start a run

Let's use the mechanisms provided by the local package to run the app systematically by submitting a couple of runs to the local app, using the local.Application.new_run method.

Create a script named app1.py, or use a cell of a Jupyter notebook. Copy and paste the following code into it, making sure you use the correct app src (for this example, the current working directory, "."):

import os

import nextmv
from nextmv import local

# Instantiate the local application.
local_app = local.Application(src=".")

# Provide any input you want for the app. This input can come from a file, for
# example.
input = nextmv.load(path=os.path.join("inputs", "input.json"))

# Execute some local runs with the provided input.
run_1 = local_app.new_run(input=input)
print("run_1:", run_1)

run_2 = local_app.new_run(input=input)
print("run_2:", run_2)
Copy

When you instantiate a local.Application, the src argument must point to a directory where the app.yaml manifest file is located.

This will print the IDs of the runs created. The app runs start in the background. Run the script, or notebook cell, to get an output similar to this:

$ python app1.py

run_1: local-lyxnxlsl
run_2: local-ykfq7nej
Copy

6. Get a run result

You can get a run result using the run ID with the local.Application.run_result method.

Create another script, which you can name app2.py, or use another cell in the Jupyter notebook. Copy and paste the following code into it, making sure you use the correct run ID (one of the identifiers that were printed in step 5) and app src:

import nextmv
from nextmv import local

# Instantiate the local application.
local_app = local.Application(src=".")

# Get the result of a specific run by its ID.
result_1 = local_app.run_result(run_id="<RUN_ID_1_PRINTED_IN_STEP_5>")
nextmv.write(result_1)
Copy

Run the script, or notebook cell, and you should see an output similar to this one:

$ python app2.py

{
  "description": "Local run created at 2025-11-15T04:25:24.898982Z",
  "id": "local-odl83e4j",
  "metadata": {
    "application_id": ".",
    "application_instance_id": "",
    "application_version_id": "",
    "created_at": "2025-11-15T04:25:24.898982Z",
    "duration": 1801.5,
    "error": "",
    "input_size": 3649.0,
    "output_size": 0.0,
    "format": {
      "input": {
        "type": "json"
      },
      "output": {
        "type": "json"
      }
    },
    "status_v2": "succeeded"
  },
  "name": "local run local-odl83e4j",
  "user_email": "",
  "console_url": "",
  "output": {
    "options": {
      "duration": 1,
      "input": "",
      "output": ""
    },
    "solution": {
      "routes": [
        {
          "vehicle_id": 0,
          "distance": 1552,
          "load": 15,
          "plan": [
            {
              "node": 0,
              "load": 0
            },
            {
              "node": 7,
              "load": 8
            },
            {
              "node": 3,
              "load": 10
            },
            {
              "node": 4,
              "load": 14
            },
            {
              "node": 1,
              "load": 15
            },
            {
              "node": 0,
              "load": 15
            }
          ]
        },
        {
          "vehicle_id": 1,
          "distance": 1552,
          "load": 15,
          "plan": [
            {
              "node": 0,
              "load": 0
            },
            {
              "node": 14,
              "load": 4
            },
            {
              "node": 16,
              "load": 12
            },
            {
              "node": 10,
              "load": 14
            },
            {
              "node": 9,
              "load": 15
            },
            {
              "node": 0,
              "load": 15
            }
          ]
        },
        {
          "vehicle_id": 2,
          "distance": 1552,
          "load": 15,
          "plan": [
            {
              "node": 0,
              "load": 0
            },
            {
              "node": 12,
              "load": 2
            },
            {
              "node": 11,
              "load": 3
            },
            {
              "node": 15,
              "load": 11
            },
            {
              "node": 13,
              "load": 15
            },
            {
              "node": 0,
              "load": 15
            }
          ]
        },
        {
          "vehicle_id": 3,
          "distance": 1552,
          "load": 15,
          "plan": [
            {
              "node": 0,
              "load": 0
            },
            {
              "node": 8,
              "load": 8
            },
            {
              "node": 2,
              "load": 9
            },
            {
              "node": 6,
              "load": 13
            },
            {
              "node": 5,
              "load": 15
            },
            {
              "node": 0,
              "load": 15
            }
          ]
        }
      ]
    },
    "statistics": {
      "result": {
        "duration": 1.001,
        "value": 6208.0,
        "custom": {
          "total_distance": 6208,
          "total_load": 60
        }
      },
      "schema": "v1"
    },
    "assets": []
  }
}
Copy

You'll notice that the .output field contains the same output that is produced by "manually" running the app. However, the run result also contains information about the run, such as its ID, creation time, duration, status, and more.

The Nextmv SDK keeps track of all the local runs you create inside your application.

7. Get run information

Runs may take a while to complete. We recommend you poll for the run status until it is completed. Once the run is completed, you can get the run result as shown above. To get the run information, use the run ID and the local.Application.run_metadata method.

Create another script, which you can name app3.py, or use another cell in the Jupyter notebook. Copy and paste the following code into it, making sure you use the correct run ID (one of the identifiers that were printed in step 5) and app src:

You can get the run information using the run ID.

import nextmv
from nextmv import local

# Instantiate the local application.
local_app = local.Application(src=".")

# Get the information of a specific run by its ID.
result_info_2 = local_app.run_metadata(run_id="<RUN_ID_2_PRINTED_IN_STEP_5>")
nextmv.write(result_info_2)
Copy

Run the script, or notebook cell, and you should see an output similar to this one:

$ python app3.py

{
  "description": "Local run created at 2025-11-15T04:25:24.898982Z",
  "id": "local-odl83e4j",
  "metadata": {
    "application_id": ".",
    "application_instance_id": "",
    "application_version_id": "",
    "created_at": "2025-11-15T04:25:24.898982Z",
    "duration": 1801.5,
    "error": "",
    "input_size": 3649.0,
    "output_size": 0.0,
    "format": {
      "input": {
        "type": "json"
      },
      "output": {
        "type": "json"
      }
    },
    "status_v2": "succeeded"
  },
  "name": "local run local-odl83e4j",
  "user_email": "",
  "console_url": ""
}
Copy

As you can see, the run information contains metadata about the run, such as its status, creation time, and more.

8. All in one

Since runs are started in the background, you should poll until the run succeeds (or fails) to get the results. You can use the local.Application.new_run_with_result method to do everything:

  1. Start a run
  2. Poll for results
  3. Return them

Create another script, which you can name app4.py, or use another cell in the Jupyter notebook. Copy and paste the following code into it, making sure you use the correct app src:

import os

import nextmv
from nextmv import local

# Instantiate the local application.
local_app = local.Application(src=".")

# Provide any input you want for the app. This input can come from a file, for
# example.
input = nextmv.load(path=os.path.join("inputs", "input.json"))

# Start a new run and get its result immediately.
result_3 = local_app.new_run_with_result(input=input)
nextmv.write(result_3)
Copy

Run the script, or notebook cell, and you should see an output similar to the one shown in the getting a run result section.

$ python app4.py

{
  "description": "Local run created at 2025-11-15T04:37:31.074413Z",
  "id": "local-cufver73",
  "metadata": {
    "application_id": ".",
    "application_instance_id": "",
    "application_version_id": "",
    "created_at": "2025-11-15T04:37:31.074413Z",
    "duration": 1763.5,
    "error": "",
    "input_size": 3649.0,
    "output_size": 0.0,
    "format": {
      "input": {
        "type": "json"
      },
      "output": {
        "type": "json"
      }
    },
    "status_v2": "succeeded"
  },
  "name": "local run local-cufver73",
  "user_email": "",
  "console_url": "",
  "output": {
    "options": {
      "duration": 1,
      "input": "",
      "output": ""
    },
    "solution": {
      "routes": [
        {
          "vehicle_id": 0,
          "distance": 1552,
          "load": 15,
          "plan": [
            {
              "node": 0,
              "load": 0
            },
            {
              "node": 7,
              "load": 8
            },
            {
              "node": 3,
              "load": 10
            },
            {
              "node": 4,
              "load": 14
            },
            {
              "node": 1,
              "load": 15
            },
            {
              "node": 0,
              "load": 15
            }
          ]
        },
        {
          "vehicle_id": 1,
          "distance": 1552,
          "load": 15,
          "plan": [
            {
              "node": 0,
              "load": 0
            },
            {
              "node": 14,
              "load": 4
            },
            {
              "node": 16,
              "load": 12
            },
            {
              "node": 10,
              "load": 14
            },
            {
              "node": 9,
              "load": 15
            },
            {
              "node": 0,
              "load": 15
            }
          ]
        },
        {
          "vehicle_id": 2,
          "distance": 1552,
          "load": 15,
          "plan": [
            {
              "node": 0,
              "load": 0
            },
            {
              "node": 12,
              "load": 2
            },
            {
              "node": 11,
              "load": 3
            },
            {
              "node": 15,
              "load": 11
            },
            {
              "node": 13,
              "load": 15
            },
            {
              "node": 0,
              "load": 15
            }
          ]
        },
        {
          "vehicle_id": 3,
          "distance": 1552,
          "load": 15,
          "plan": [
            {
              "node": 0,
              "load": 0
            },
            {
              "node": 8,
              "load": 8
            },
            {
              "node": 2,
              "load": 9
            },
            {
              "node": 6,
              "load": 13
            },
            {
              "node": 5,
              "load": 15
            },
            {
              "node": 0,
              "load": 15
            }
          ]
        }
      ]
    },
    "statistics": {
      "result": {
        "duration": 1.001,
        "value": 6208.0,
        "custom": {
          "total_distance": 6208,
          "total_load": 60
        }
      },
      "schema": "v1"
    },
    "assets": []
  }
}
Copy

The complete methodology for running is discussed in detail in the runs tutorial.

9. Visualize run assets

The Nextmv-ified main.py script contains a method called create_route_visualization, which was created by us. This method uses plotly to create a visualization for the given example: the routes assigned to the vehicles, departing and returning to the depot. We are going to use the location coordinates provided by the OR-Tools example to visualize the routes.

Create a new input_with_coordinates.json file in the inputs directory which includes the coordinates:

{
  "distance_matrix": [
    [0, 548, 776, 696, 582, 274, 502, 194, 308, 194, 536, 502, 388, 354, 468, 776, 662],
    [548, 0, 684, 308, 194, 502, 730, 354, 696, 742, 1084, 594, 480, 674, 1016, 868, 1210],
    [776, 684, 0, 992, 878, 502, 274, 810, 468, 742, 400, 1278, 1164, 1130, 788, 1552, 754],
    [696, 308, 992, 0, 114, 650, 878, 502, 844, 890, 1232, 514, 628, 822, 1164, 560, 1358],
    [582, 194, 878, 114, 0, 536, 764, 388, 730, 776, 1118, 400, 514, 708, 1050, 674, 1244],
    [274, 502, 502, 650, 536, 0, 228, 308, 194, 240, 582, 776, 662, 628, 514, 1050, 708],
    [502, 730, 274, 878, 764, 228, 0, 536, 194, 468, 354, 1004, 890, 856, 514, 1278, 480],
    [194, 354, 810, 502, 388, 308, 536, 0, 342, 388, 730, 468, 354, 320, 662, 742, 856],
    [308, 696, 468, 844, 730, 194, 194, 342, 0, 274, 388, 810, 696, 662, 320, 1084, 514],
    [194, 742, 742, 890, 776, 240, 468, 388, 274, 0, 342, 536, 422, 388, 274, 810, 468],
    [536, 1084, 400, 1232, 1118, 582, 354, 730, 388, 342, 0, 878, 764, 730, 388, 1152, 354],
    [502, 594, 1278, 514, 400, 776, 1004, 468, 810, 536, 878, 0, 114, 308, 650, 274, 844],
    [388, 480, 1164, 628, 514, 662, 890, 354, 696, 422, 764, 114, 0, 194, 536, 388, 730],
    [354, 674, 1130, 822, 708, 628, 856, 320, 662, 388, 730, 308, 194, 0, 342, 422, 536],
    [468, 1016, 788, 1164, 1050, 514, 514, 662, 320, 274, 388, 650, 536, 342, 0, 764, 194],
    [776, 868, 1552, 560, 674, 1050, 1278, 742, 1084, 810, 1152, 274, 388, 422, 764, 0, 798],
    [662, 1210, 754, 1358, 1244, 708, 480, 856, 514, 468, 354, 844, 730, 536, 194, 798, 0]
  ],
  "demands" : [0, 1, 1, 2, 4, 2, 4, 8, 8, 1, 2, 1, 2, 4, 4, 8, 8],
  "vehicle_capacities" : [15, 15, 15, 15],
  "num_vehicles" : 4,
  "depot" : 0,
  "coordinates": [
    [456, 320],
    [228, 0],
    [912, 0],
    [0, 80],
    [114, 80],
    [570, 160],
    [798, 160],
    [342, 240],
    [684, 240],
    [570, 400],
    [912, 400],
    [114, 480],
    [228, 480],
    [342, 560],
    [684, 560],
    [0, 640],
    [798, 640]
  ]
}
Copy

Up until now, the main.py script has not created any run assets given that no coordinates were given. Now, we can run the app again using this new input file to generate the visualization assets. You can use the local.Application.run_visuals method to visualize the assets of a run.

Create another script, which you can name app5.py, or use another cell in the Jupyter notebook. Copy and paste the following code into it, making sure you use the correct app src:

import os

import nextmv
from nextmv import local

# Instantiate the local application.
local_app = local.Application(src=".")

# Provide any input you want for the app. This input can come from a file, for
# example.
input = nextmv.load(path=os.path.join("inputs", "input_with_coordinates.json"))

# Start a new run and get its result immediately.
result_4 = local_app.new_run_with_result(input=input)
nextmv.write(result_4)

# Visualize the assets of the run.
local_app.run_visuals(run_id=result_4.id)
Copy

Run the script, or notebook cell, and you should see an output similar to this one:

$ python app5.py

{
  "description": "Local run created at 2025-11-15T04:37:31.074413Z",
  "id": "local-cufver73",
  "metadata": {
    "application_id": ".",
    "application_instance_id": "",
    "application_version_id": "",
    "created_at": "2025-11-15T04:37:31.074413Z",
    "duration": 1763.5,
    "error": "",
    "input_size": 3649.0,
    "output_size": 0.0,
    "format": {
      "input": {
        "type": "json"
      },
      "output": {
        "type": "json"
      }
    },
    "status_v2": "succeeded"
  },
  "name": "local run local-cufver73",
  "user_email": "",
  "console_url": "",
  "output": {
    "options": {
      "duration": 1,
      "input": "",
      "output": ""
    },
    "solution": {
      "routes": [
        {
          "vehicle_id": 0,
          "distance": 1552,
          "load": 15,
          "plan": [
            {
              "node": 0,
              "load": 0
            },
            {
              "node": 7,
              "load": 8
            },
            {
              "node": 3,
              "load": 10
            },
            {
              "node": 4,
              "load": 14
            },
            {
              "node": 1,
              "load": 15
            },
            {
              "node": 0,
              "load": 15
            }
          ]
        },
        {
          "vehicle_id": 1,
          "distance": 1552,
          "load": 15,
          "plan": [
            {
              "node": 0,
              "load": 0
            },
            {
              "node": 14,
              "load": 4
            },
            {
              "node": 16,
              "load": 12
            },
            {
              "node": 10,
              "load": 14
            },
            {
              "node": 9,
              "load": 15
            },
            {
              "node": 0,
              "load": 15
            }
          ]
        },
        {
          "vehicle_id": 2,
          "distance": 1552,
          "load": 15,
          "plan": [
            {
              "node": 0,
              "load": 0
            },
            {
              "node": 12,
              "load": 2
            },
            {
              "node": 11,
              "load": 3
            },
            {
              "node": 15,
              "load": 11
            },
            {
              "node": 13,
              "load": 15
            },
            {
              "node": 0,
              "load": 15
            }
          ]
        },
        {
          "vehicle_id": 3,
          "distance": 1552,
          "load": 15,
          "plan": [
            {
              "node": 0,
              "load": 0
            },
            {
              "node": 8,
              "load": 8
            },
            {
              "node": 2,
              "load": 9
            },
            {
              "node": 6,
              "load": 13
            },
            {
              "node": 5,
              "load": 15
            },
            {
              "node": 0,
              "load": 15
            }
          ]
        }
      ]
    },
    "statistics": {
      "result": {
        "duration": 1.001,
        "value": 6208.0,
        "custom": {
          "total_distance": 6208,
          "total_load": 60
        }
      },
      "schema": "v1"
    },
    "assets": [...] # <==== Assets will now be present here.
  }
}
Copy

The .output.solution.assets field will now contain the visualization assets produced by the create_route_visualization method in the main.py script. The following libraries are supported for visualizing assets with the run_visuals method:

  • plotly
  • folium

This will also open a browser window for each asset produced by the run. You should see a simple plot like the following:

OR-Tools visuals

The run_visuals method may not work as expected in a Jupyter notebook environment. We recommend running it from a script executed in a terminal.

10. Understanding what happened

If you inspect the application directory consolidated in step 4 again, you will see a structure similar to the following:

.
├── .nextmv
│   └── runs
│       ├── {RUN_1}
│       │   ├── inputs
│       │   │   └── input.json
│       │   ├── {RUN_1}.json
│       │   ├── logs
│       │   │   └── logs.log
│       │   ├── outputs
│       │   │   ├── assets
│       │   │   │   └── assets.json
│       │   │   ├── solutions
│       │   │   │   └── solution.json
│       │   │   └── statistics
│       │   │       └── statistics.json
│       │   └── visuals
│       ├── {RUN_2}
│       │   ├── inputs
│       │   │   └── input.json
│       │   ├── {RUN_2}.json
│       │   ├── logs
│       │   │   └── logs.log
│       │   ├── outputs
│       │   │   ├── assets
│       │   │   │   └── assets.json
│       │   │   ├── solutions
│       │   │   │   └── solution.json
│       │   │   └── statistics
│       │   │       └── statistics.json
│       │   └── visuals
│       ├── {RUN_3}
│       │   ├── inputs
│       │   │   └── input.json
│       │   ├── {RUN_3}.json
│       │   ├── logs
│       │   │   └── logs.log
│       │   ├── outputs
│       │   │   ├── assets
│       │   │   │   └── assets.json
│       │   │   ├── solutions
│       │   │   │   └── solution.json
│       │   │   └── statistics
│       │   │       └── statistics.json
│       │   └── visuals
│       └── {RUN_4}
│           ├── inputs
│           │   └── input.json
│           ├── {RUN_4}.json
│           ├── logs
│           │   └── logs.log
│           ├── outputs
│           │   ├── assets
│           │   │   └── assets.json
│           │   ├── solutions
│           │   │   └── solution.json
│           │   └── statistics
│           │       └── statistics.json
│           └── visuals
│               └── Routes_0.html
├── app.yaml
├── app1.py
├── app2.py
├── app3.py
├── app4.py
├── app5.py
├── inputs
│   ├── input_with_coordinates.json
│   └── input.json
├── main.py
├── README.md
└── requirements.txt
Copy

The .nextmv dir is used to store and manage the local applications runs in a structured way. The local package is used to interact with these files, with methods for starting runs, retrieving results, visualizing charts, and more.

🎉🎉🎉 Congratulations, you have finished this tutorial!

Full tutorial code

You can find the consolidated code examples used in this tutorial in the tutorials GitHub repository. The free-local-experience dir contains all the code that was shown in this tutorial.

For the example, you will find two directories:

  • original: the original example without any modifications.
  • nextmv-ified: the example converted into a Nextmv Application.

Go into each directory for instructions about running the decision model.

Page last updated

Previous

Bring your own model - Python

Next

Platform

Contents

Go to on-page nav menu
